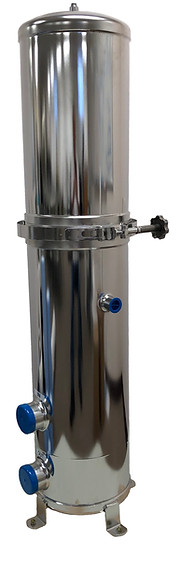

Single-Round High-Flow Housing, Clamped Cover

Our GreenStory GSGWF ICC-226 Series housings have a robust design and high-quality con­struction that assures dependable protection for industrial and commercial applications.  This single element high-flow housing, clamped cover,  can accept a variety of large diameter filter elements ranging from 6” to 8” O.D. and 40” length.

FEATURES & BENEFITS:

  • Flow rates up to 100 gallons per minute (gpm)

  • Heavy-duty stainless clamp closure with ergonomic grip allows for tool-free cartridge changes

  • Models to accommodate 30” and 40” length elements (8.0” O.D. max)

SPECIFICATIONS:

  • Construction:

    • 316 Stainless Steel filter housing

    • Stainless steel legs

    • 2” NPT inlet and outlet connections standard

    • Differential/Drain/Vent connections standard

  • 150psi design pressure

  • Accepts 226-Flat End Cap style cartridges

PROCESS FLUIDS:

  • Water (fresh, sea, RO, DI, waste, desalination)

  • Food & Beverage

  • Soaps & Detergents

  • Pulp & Paper

  • Paints & Coating

  • Chemicals

  • Oils

  • Coolants

  • Power Generation

GreenStory Global Single-Round, High-Flow Housing, Clamped-Cover 316 Stainless Steel
GreenStory Global Single-Round, High-Flow Housing, Clamped-Cover 316 Stainless Steel
SRHFHCC Part Builder.png
